ISO 7380-1; DIN 7380
Socket Screws M3 ISO 7380-1
ISO 7380-1 Socket Screws. Listed by suppliers together with DIN 7380 and ISO 7380-2. This page lists 335 verified variants in Stainless Steel A2, Steel 10.9 and Stainless Steel A4, sizes M2–M16, from suppliers in Germany and Spain — ranked by technical match, never by paid placement.
Base specifications
- Category
- Screw & Bolt
- Standard
- ISO 7380-1DIN 7380
- Material grade
- Stainless Steel A4
- Surface treatment
- Untreated
- Head type
- Button
- Drive
- Hex
- Size
- M3
- Length
- 10 mm
- Type
- Socket Screws
- Full/Partial thread
- Full thread

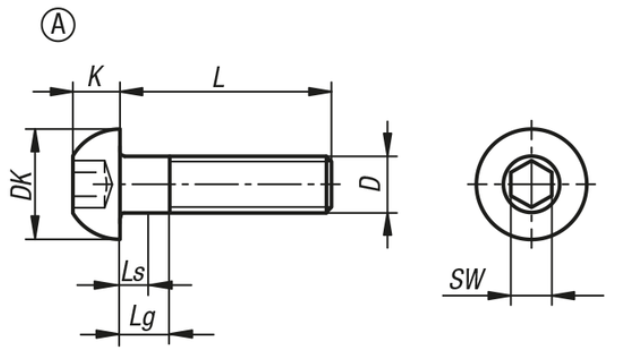

Additional information
Code: K1796.1603X10; Form A
Length (L): 10 mm; Ls min: 0 mm; Lg max: 1.5 mm; DK (head diameter): 5.7 mm; K (head height): 1.65 mm; SW (hex socket): 2 mm
Variants · 247
Select a variant to see the supplier| Title | Size | Length | Material | Treatment | Suppliers | Ref | Compare |
|---|---|---|---|---|---|---|---|
| Socket Screws M3 ISO 7380-1 | M3 | 3 mm | Stainless Steel A2 | - | 1 supplier | GN-ISO73801-M3X3-A2 | |
| Socket Screws M2.5 ISO 7380-1 | M2.5 | 3 mm | Stainless Steel A2 | - | 1 supplier | GN-ISO73801-M2.5X3-A2 | |
| Socket Screws M2 ISO 7380-1 | M2 | 3 mm | Stainless Steel A2 | - | 1 supplier | GN-ISO73801-M2X3-A2 | |
| Socket Screws M2 ISO 7380-1 | M2 | 4 mm | Stainless Steel A2 | - | 1 supplier | GN-ISO73801-M2X4-A2 | |
| Socket Screws M2.5 ISO 7380-1 | M2.5 | 4 mm | Stainless Steel A2 | - | 1 supplier | GN-ISO73801-M2.5X4-A2 | |
| Socket Screws M4 ISO 7380-1 | M4 | 4 mm | Stainless Steel A2 | - | 1 supplier | GN-ISO73801-M4X4-A2 | |
| Socket Screws M3 ISO 7380-1 | M3 | 4 mm | Stainless Steel A2 | - | 1 supplier | GN-ISO73801-M3X4-A2 | |
| Socket Screws M4 ISO 7380-1 | M4 | 5 mm | Stainless Steel A2 | - | 1 supplier | GN-ISO73801-M4X5-A2 | |
| Socket Screws M2 ISO 7380-1 | M2 | 5 mm | Stainless Steel A2 | - | 1 supplier | GN-ISO73801-M2X5-A2 | |
| Socket Screws M3 ISO 7380-1 | M3 | 5 mm | Stainless Steel A2 | - | 1 supplier | GN-ISO73801-M3X5-A2 | |
| Socket Screws M5 ISO 7380-1 | M5 | 5 mm | Stainless Steel A2 | - | 1 supplier | GN-ISO73801-M5X5-A2 | |
| Socket Screws M2.5 ISO 7380-1 | M2.5 | 5 mm | Stainless Steel A2 | - | 1 supplier | GN-ISO73801-M2.5X5-A2 | |
| Socket Screws M2.5 ISO 7380-1 | M2.5 | 6 mm | Stainless Steel A2 | - | 1 supplier | GN-ISO73801-M2.5X6-A2 | |
| Socket Screws M3 ISO 7380-1 | M3 | 6 mm | Stainless Steel A2 | - | 1 supplier | GN-ISO73801-M3X6-A2 | |
| Socket Screws M4 ISO 7380-1 | M4 | 6 mm | Stainless Steel A2 | - | 1 supplier | GN-ISO73801-M4X6-A2 | |
| Socket Screws M2 ISO 7380-1 | M2 | 6 mm | Stainless Steel A2 | - | 1 supplier | GN-ISO73801-M2X6-A2 | |
| Socket Screws M5 ISO 7380-1 | M5 | 6 mm | Stainless Steel A2 | - | 1 supplier | GN-ISO73801-M5X6-A2 | |
| Socket Screws M8 ISO 7380-1 | M8 | 8 mm | Steel 10.9 | Untreated (black) | 1 supplier | GN-ISO73801-M8X8-10.9 | |
| Socket Screws M3 ISO 7380-2 | M3 | 8 mm | Stainless Steel A2 | Untreated | 1 supplier | GN-ISO73802-M3X8-A2 | |
| Socket Screws M5 ISO 7380-1 | M5 | 8 mm | Steel 10.9 | Zinc Plated | 1 supplier | GN-ISO73801-M5X8-10.9 | |
| Socket Screws M4 ISO 7380-1 | M4 | 8 mm | Stainless Steel A2 | Untreated | 1 supplier | GN-ISO73801-M4X8-A2 | |
| Socket Screws M4 ISO 7380-1 | M4 | 8 mm | Steel 10.9 | Untreated (black) | 1 supplier | GN-ISO73801-M4X8-10.9 | |
| Socket Screws M3 ISO 7380-1 | M3 | 8 mm | Stainless Steel A2 | - | 1 supplier | GN-ISO73801-M3X8-A2 | |
| Socket Screws M6 ISO 7380-2 | M6 | 8 mm | Steel 10.9 | Zinc Plated | 1 supplier | GN-ISO73802-M6X8-10.9 | |
| Socket Screws M5 ISO 7380-1 | M5 | 8 mm | Steel 10.9 | Untreated (black) | 1 supplier | GN-ISO73801-M5X8-10.9 |
Questions about ISO 7380-1
- What is ISO 7380-1?
- On GyverNet, ISO 7380-1 parts are listed as Socket Screws. Verified sizes on file: M2–M16. Materials on file: Stainless Steel A2, Steel 10.9 and Stainless Steel A4.
- Which standards are equivalent to ISO 7380-1?
- Suppliers on GyverNet list this part as ISO 7380-1, DIN 7380 and ISO 7380-2 in the same catalog entry.
- How many verified suppliers list ISO 7380-1 on GyverNet?
- 3 verified suppliers on this page: Schäfer + Peters GmbH, KIPP and INDEX - Lontana Group.
