ISO 7380-2; DIN 7380
Socket Screws M5 ISO 7380-2
ISO 7380-2 Socket Screws. Listed by suppliers together with DIN 7380 and ISO 7380-1. This page lists 256 verified variants in Stainless Steel A2, Steel 10.9 and Stainless Steel A4, sizes M3–M16, from suppliers in Germany and Spain — ranked by technical match, never by paid placement.
Base specifications
- Category
- Screw & Bolt
- Standard
- ISO 7380-2DIN 7380
- Material grade
- Steel 10.9
- Surface treatment
- Zinc Plated
- Head type
- Button
- Drive
- Hex
- Size
- M5
- Length
- 16 mm
- Type
- Socket Screws
- Full/Partial thread
- Full thread

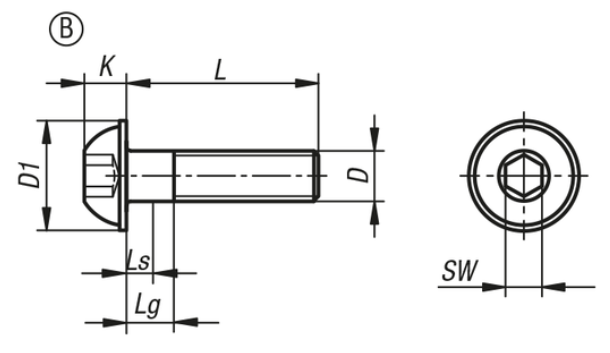

Additional information
Code: K1796.2505X16; Form B
Length (L): 16 mm; Ls min: 0 mm; Lg max: 2.4 mm; D1 (collar diameter): 11.8 mm; K (head height): 2.75 mm; SW (hex socket): 3 mm
Variants · 168
Select a variant to see the supplier| Title | Size | Length | Material | Treatment | Suppliers | Ref | Compare |
|---|---|---|---|---|---|---|---|
| Socket Screws M3 ISO 7380-2 | M3 | 8 mm | Stainless Steel A2 | Untreated | 1 supplier | GN-ISO73802-M3X8-A2 | |
| Socket Screws M3 ISO 7380-1 | M3 | 8 mm | Steel 10.9 | Untreated (black) | 1 supplier | GN-ISO73801-M3X8-10.9 | |
| Socket Screws M5 ISO 7380-2 | M5 | 8 mm | Stainless Steel A2 | Untreated | 1 supplier | GN-ISO73802-M5X8-A2 | |
| Socket Screws M4 ISO 7380-2 | M4 | 8 mm | Stainless Steel A2 | Untreated | 1 supplier | GN-ISO73802-M4X8-A2 | |
| Socket Screws M8 ISO 7380-1 | M8 | 8 mm | Steel 10.9 | Zinc Plated | 1 supplier | GN-ISO73801-M8X8-10.9 | |
| Socket Screws M4 ISO 7380-2 | M4 | 8 mm | Steel 10.9 | Untreated (black) | 1 supplier | GN-ISO73802-M4X8-10.9 | |
| Socket Screws M5 ISO 7380-1 | M5 | 8 mm | Steel 10.9 | Untreated (black) | 1 supplier | GN-ISO73801-M5X8-10.9 | |
| Socket Screws M5 ISO 7380-2 | M5 | 8 mm | Steel 10.9 | Zinc Plated | 1 supplier | GN-ISO73802-M5X8-10.9 | |
| Socket Screws M6 ISO 7380-2 | M6 | 8 mm | Steel 10.9 | Zinc Plated | 1 supplier | GN-ISO73802-M6X8-10.9 | |
| Socket Screws M6 ISO 7380-1 | M6 | 8 mm | Steel 10.9 | Untreated (black) | 1 supplier | GN-ISO73801-M6X8-10.9 | |
| Socket Screws M6 ISO 7380-1 | M6 | 8 mm | Stainless Steel A4 | Untreated | 1 supplier | GN-ISO73801-M6X8-A4 | |
| Socket Screws M8 ISO 7380-1 | M8 | 8 mm | Steel 10.9 | Untreated (black) | 1 supplier | GN-ISO73801-M8X8-10.9 | |
| Socket Screws M5 ISO 7380-1 | M5 | 8 mm | Stainless Steel A4 | Untreated | 1 supplier | GN-ISO73801-M5X8-A4 | |
| Socket Screws M4 ISO 7380-1 | M4 | 8 mm | Stainless Steel A4 | Untreated | 1 supplier | GN-ISO73801-M4X8-A4 | |
| Socket Screws M6 ISO 7380-2 | M6 | 8 mm | Stainless Steel A2 | Untreated | 1 supplier | GN-ISO73802-M6X8-A2 | |
| Socket Screws M3 ISO 7380-1 | M3 | 8 mm | Steel 10.9 | Zinc Plated | 1 supplier | GN-ISO73801-M3X8-10.9 | |
| Socket Screws M4 ISO 7380-1 | M4 | 8 mm | Steel 10.9 | Zinc Plated | 1 supplier | GN-ISO73801-M4X8-10.9 | |
| Socket Screws M8 ISO 7380-2 | M8 | 10 mm | Stainless Steel A2 | Untreated | 1 supplier | GN-ISO73802-M8X10-A2 | |
| Socket Screws M6 ISO 7380-1 | M6 | 10 mm | Stainless Steel A2 | Untreated | 1 supplier | GN-ISO73801-M6X10-A2 | |
| Socket Screws M4 ISO 7380-1 | M4 | 10 mm | Stainless Steel A2 | Untreated | 1 supplier | GN-ISO73801-M4X10-A2 | |
| Socket Screws M6 ISO 7380-1 | M6 | 10 mm | Stainless Steel A4 | Untreated | 1 supplier | GN-ISO73801-M6X10-A4 | |
| Socket Screws M3 ISO 7380-1 | M3 | 10 mm | Steel 10.9 | Zinc Plated | 1 supplier | GN-ISO73801-M3X10-10.9 | |
| Socket Screws M3 ISO 7380-2 | M3 | 10 mm | Stainless Steel A2 | Untreated | 1 supplier | GN-ISO73802-M3X10-A2 | |
| Socket Screws M5 ISO 7380-1 | M5 | 10 mm | Stainless Steel A4 | Untreated | 1 supplier | GN-ISO73801-M5X10-A4 | |
| Socket Screws M5 ISO 7380-1 | M5 | 10 mm | Steel 10.9 | Zinc Plated | 1 supplier | GN-ISO73801-M5X10-10.9 |
Questions about ISO 7380-2
- What is ISO 7380-2?
- On GyverNet, ISO 7380-2 parts are listed as Socket Screws. Verified sizes on file: M3–M16. Materials on file: Stainless Steel A2, Steel 10.9 and Stainless Steel A4.
- Which standards are equivalent to ISO 7380-2?
- Suppliers on GyverNet list this part as ISO 7380-2, DIN 7380 and ISO 7380-1 in the same catalog entry.
- How many verified suppliers list ISO 7380-2 on GyverNet?
- 2 verified suppliers on this page: KIPP and INDEX - Lontana Group.
