DIN 934
Hex M8 DIN 934
Base specifications
- Category
- Nut
- Standard
- DIN 934
- Material grade
- Stainless steel A2
- Surface treatment
- None
- Size
- M8
- Length
- 6.5 mm
- Type
- Hex
Additional information

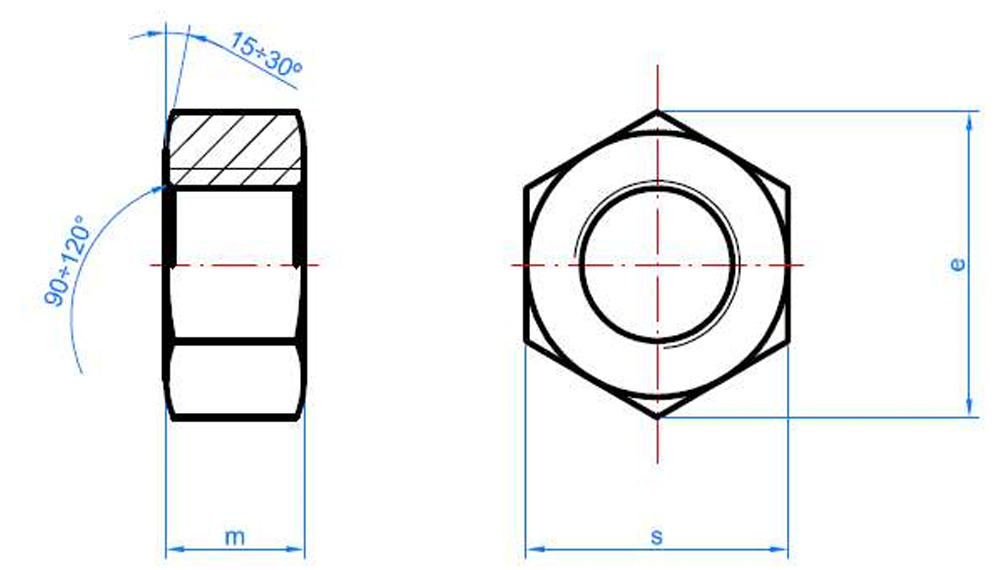

s (mm): 13; e (mm): 14,4; m (mm): 6,5; Wrench size: 13.
Variants · 56
Select a variant to see the supplier| Title | Size | Length | Material | Treatment | Suppliers | Ref |
|---|---|---|---|---|---|---|
| Hex M1 DIN 934 | M1 | 0.8 mm | Stainless Steel A2 | - | 1 supplier | GN-DIN934-M1-A2 |
| Hex M1.2 DIN 934 | M1.2 | 1 mm | Stainless Steel A2 | - | 1 supplier | GN-DIN934-M1.2-A2 |
| Hex M1.4 DIN 934 | M1.4 | 1.2 mm | Stainless Steel A2 | - | 1 supplier | GN-DIN934-M1.4-A2 |
| Hex M1.6 DIN 934 | M1.6 | 1.3 mm | Stainless Steel A2 | - | 1 supplier | GN-DIN934-M1.6-A2 |
| Hex M1.8 DIN 934 | M1.8 | 1.4 mm | Stainless Steel A2 | - | 1 supplier | GN-DIN934-M1.8-A2 |
| Hex M1.7 DIN 934 | M1.7 | 1.4 mm | Stainless Steel A2 | - | 1 supplier | GN-DIN934-M1.7-A2 |
| Hex M2 DIN 934 | M2 | 1.6 mm | Stainless Steel A2 | - | 1 supplier | GN-DIN934-M2-A2 |
| Hex M2.3 DIN 934 | M2.3 | 1.8 mm | Stainless Steel A2 | - | 1 supplier | GN-DIN934-M2.3-A2 |
| Hex M2.6 DIN 934 | M2.6 | 2 mm | Stainless Steel A2 | - | 1 supplier | GN-DIN934-M2.6-A2 |
| Hex M2.5 DIN 934 | M2.5 | 2 mm | Stainless Steel A2 | - | 1 supplier | GN-DIN934-M2.5-A2 |
| Hex M3 DIN 934 | M3 | 2.4 mm | Stainless Steel A2 | - | 1 supplier | GN-DIN934-M3-A2 |
| Hex M3.5 DIN 934 | M3.5 | 2.8 mm | Stainless Steel A2 | - | 1 supplier | GN-DIN934-M3.5-A2 |
| Hex M4 DIN 934 | M4 | 3.2 mm | Stainless Steel A2 | - | 1 supplier | GN-DIN934-M4-A2 |
| Hex M4 DIN 934 | M4 | 3.2 mm | Steel | Zinc Plated | 1 supplier | GN-DIN934-M4-ST |
| Hex M5 DIN 934 | M5 | 4 mm | Steel | Zinc Plated | 1 supplier | GN-DIN934-M5-ST |
| Hex M5 DIN 934 | M5 | 4 mm | Stainless steel A2 | - | 2 suppliers | GN-DIN934-M5-A2 |
| Hex M6 DIN 934 | M6 | 5 mm | Stainless Steel A2 | - | 1 supplier | GN-DIN934-M6-A2 |
| Hex M6 DIN 934 | M6 | 5 mm | Steel | Zinc Plated | 1 supplier | GN-DIN934-M6-ST |
| Hex M7 DIN 934 | M7 | 5.5 mm | Stainless Steel A2 | - | 1 supplier | GN-DIN934-M7-A2 |
| Hex M8 DIN 934 | M8 | 6.5 mm | Stainless Steel A2 | - | 2 suppliers | GN-DIN934-M8-A2 |
| Hex M8 DIN 934 | M8 | 6.5 mm | Steel | Zinc Plated | 1 supplier | GN-DIN934-M8-ST |
| Hex M10 DIN 934 | M10 | 8 mm | Steel | Zinc Plated | 1 supplier | GN-DIN934-M10-ST |
| Hex M10 DIN 934 | M10 | 8 mm | Stainless steel A2 | - | 2 suppliers | GN-DIN934-M10-A2 |
| Hex M12 DIN 934 | M12 | 10 mm | Stainless steel A2 | - | 2 suppliers | GN-DIN934-M12-A2 |
| Hex M12 DIN 934 | M12 | 10 mm | Steel | Zinc Plated | 1 supplier | GN-DIN934-M12-ST |
